WATER TREATMENT EQUIPMENT FOR INDUSTRIAL, MUNICIPAL AND MEDICAL APPLICATIONS

Culligan's commercial and industrial business (which has 80 years of experience) became part of GRUNDFOS in 2025. With the acquisition of Culligan Commercial & Industrial in Italy, Grundfos combines Culligan's water treatment expertise with Grundfos' world-renowned pump technology capabilities. The modular design of the water treatment systems allows them to be among the fastest to market and fully tailored to your needs.

This modularity optimizes capital expenditures whilst ensuring the best levels of treatment for your water.

Water treatment technologies:

Water filtration

Self-cleaning filters

Self-cleaning filters remove suspended solids from water without replacing filter cartridges. Available in fully automatic or semi-automatic versions with different capacities and filtration levels.

Microfiltration

Mechanical filters are a highly flexible, versatile and economical solution for addressing small scale water filtration problems. Most commonly used as a barrier against suspended solids for protecting sensitive equipment.

Media filters for small industrial, commercial applications

These filters are suitable for commercial and small industrial applications, as well as for pre-treatment of water softeners and boilers (up to 8 m³/hour). They reduce water turbidity, adsorb odours, neutralise acidity and reduce heavy metals in water.

Media filters for industrial and municipal applications

Fully automatic, heavy duty pressure filters, manufactured entirely by Grundfos Water Treatment Italy (formerly Culligan), made from high grade carbon steel with a food-grade epoxy resin inner coating. Modular design allows units to be combined for high flows.

Learn more about the water softening systems!

Water softening

Water softeners for small industrial and commercial applications

The range of small industrial, commercial water softeners can significantly reduce the accumulation of harmful scale caused by hard water. Available with Progressive Flow, Smart Controller, Brine Reclaim and Aqua-Sensor® technologies, Grundfos water softening systems for small installations are among the most efficient on the market.

Water softeners for industrial applications

The industrial water softeners provide high quality soft water for high volume (up to 225 m³/hour) applications. The softened water reduces the build-up of harmful scale caused by iron, calcium, magnesium and manganese ions in equipment, without the use of anti-scalant chemicals, resulting in immediate and long-term energy and cost savings.

Learn more about water filtration systems!

Ultrafiltration

Ultrafiltration units

Ultrafiltration (ULF) is a process where insoluble particles are removed from water under pressure.

Ultrafiltration systems are ideal for treating ground water and surface water, as well as for pre-treating water in seawater desalination systems.

Using robust outside-in PVDF fiber technology the hollow fiber membranes benefit from high clean-ability, low chemical consumption, high recovery, and a superior combination of mechanical properties and chemical resistance.

The modular system allows you to assemble this high quality product to meet all your needs.

Reverse osmosis

Aqua-Cleer Compact RO series

The AC COMPACT PRO series is a reverse osmosis (R.O.) unit designed to provide pressurized water with very low salt content.

The AC COMPACT LAB series is a reverse osmosis (R.O.) system combined with a demineralization and ultrafiltration system, designed to provide quality 3 deionized water under pressure in compliance with UNI EN 3696/1996 standard.

The COMPACT PRO and LAB series includes an electronic control unit equipped with a control/management touch screen display able to receive and display all information and alarm data.

This technology guarantees 90-95% salt removal.

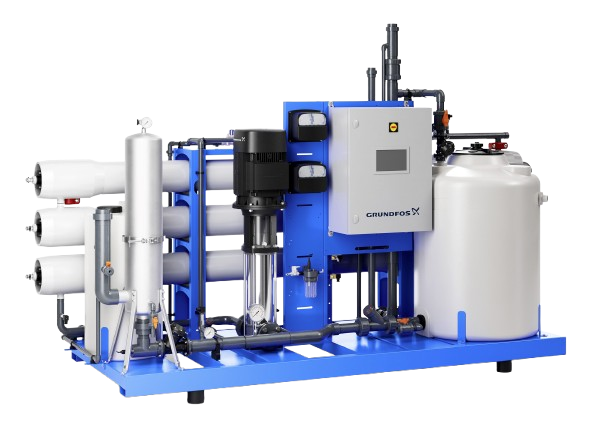

IW Evo RO series

For flows up to 40 m³/h

IW Evo RO Series is designed to meet the most demanding and exacting commercial, industrial and municipal water requirements.

Modular in design and using the latest in low pressure, high-efficiency membranes mounted on a painted steel frame, reverse osmosis models provide the lowest possible operating costs while producing reliable, high-quality RO water.

SW Evo RO series

For flows up to 40 m³/h

Designed specifically for seawater desalination, the SW reverse osmosis unit is able to treat water with up to 42 000 ppm of salinity.

The unit is manufactured from fully corrosion-resistant materials such as duplex stainless steel and is mounted on a painted steel frame for easy installation (either at sea or on the beach).



MFP RO series

The versatile MFP RO unit, installed worldwide, is capable of treating flows up to 3600 l/h. The compact, vertical steel-framed unit features a modular design, premium quality components and the latest technology. The MFP offers the ideal combination of flexibility, reliability and robustness.

Learn more about the reverse osmosis systems!

Medical RO systems

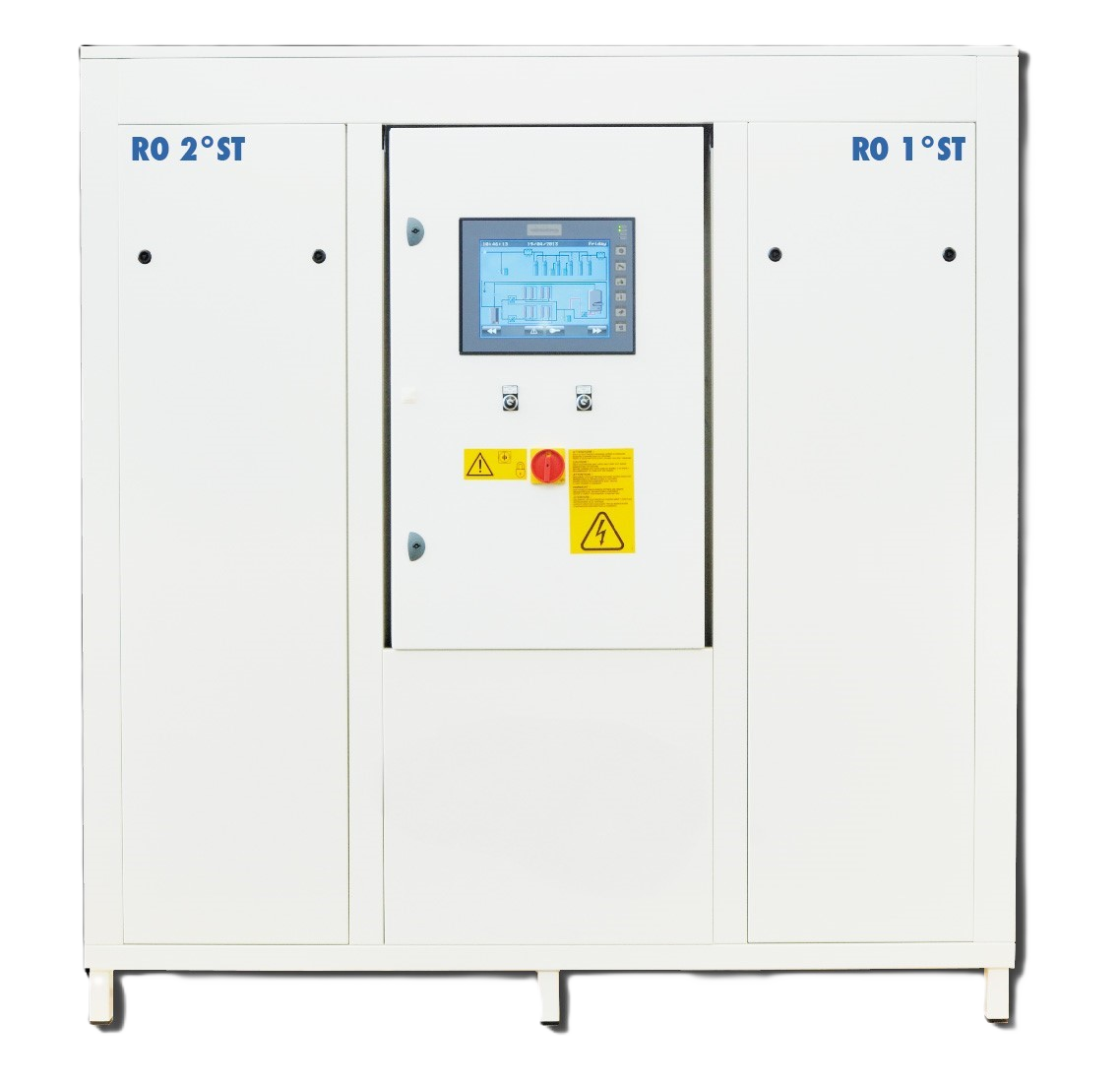

RO2 dialysis RO

For flows of up to 3600 l/h, the RO2 bi-Osmosis system is ideal for treating water used for total haemodialysis. Water passes through 2 reverse osmosis systems to produce the highest quality water, but in the event of a problem the system automatically switches to single pass treatment, ensuring patient safety at all times.

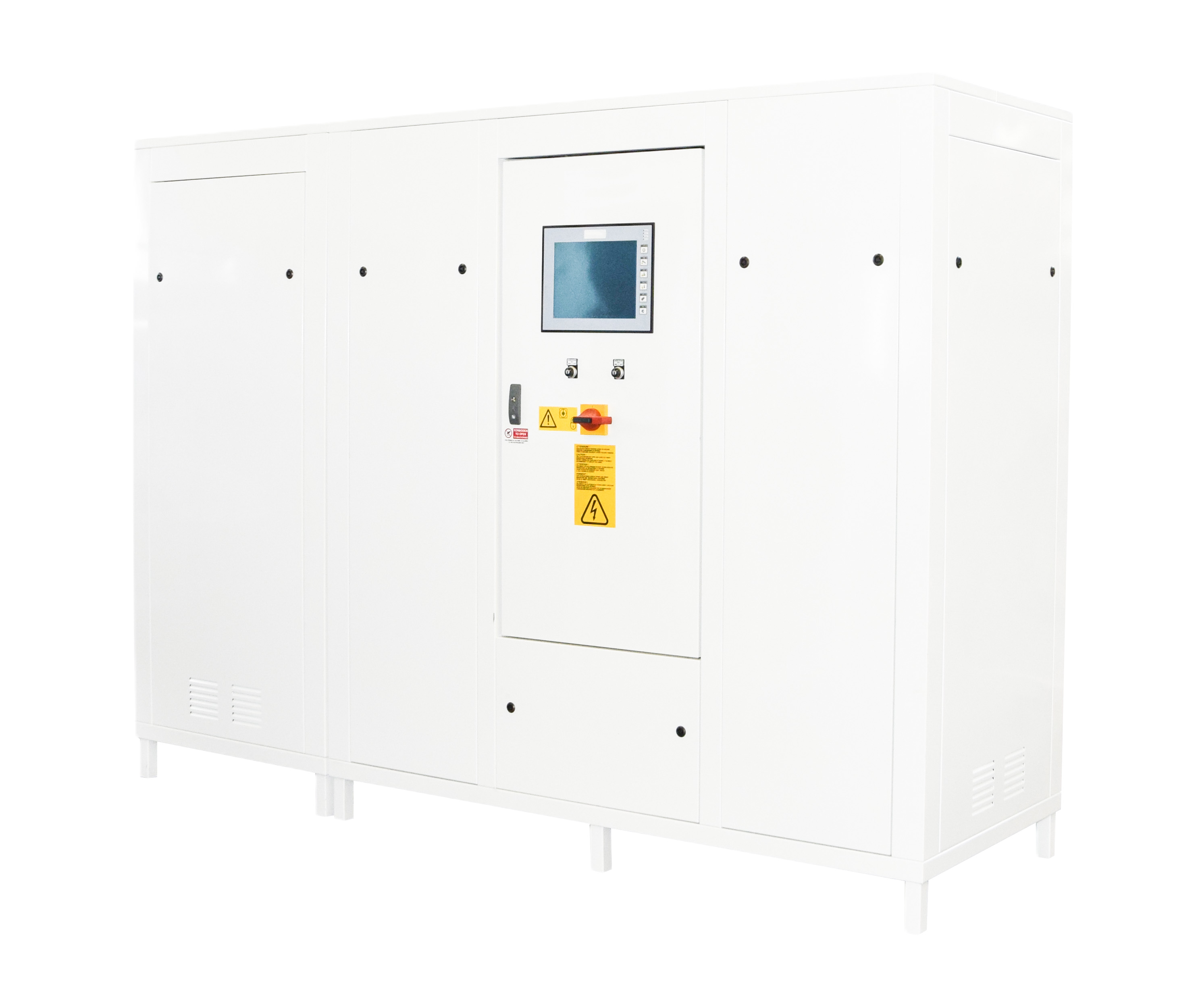

RO2 thermo RO

For flows of up to 3600 l/h, the RO2 bi-Osmosis system is ideal for treating water used for total haemodialysis. Water passes through 2 reverse osmosis systems to produce the highest quality water, and also uses an in-built heat sanitization system to disinfect the system.

SDS RO (Single Dialysis System)

Flows up to 80 l/h

SDS (Single Dialysis System) produces up to 80 l/h of reverse osmosis quality water for haemodialysis. The device is ideal for applications such as dialysis in the patient's home, use by emergency services, acute dialysis and transplant patients. The compact and easy-to-use design is on wheels for easy mobility.

Learn more about the medical water treatment systems!

Deionization – Ion exchange water treatment systems

CEDI – Continuous electro-deionization

The CEDI process uses electricity, resin and membranes to reduce the ions in the water, decreasing the need for chemicals. CEDI is used as a post-treatment to further deionise the reverse osmosis permeate to produce even better (megaohm-cm) quality water.

Models are available with flow rates up to 13 m³/h.

Automatic deionization

Fully automated demineralization units for flows up to 40 m³/h. Choose from a flexible configuration of weak base or strong base resin tanks. Deyolit series deionizers are equipped with a control system to monitor the process and automatically start regeneration if water quality deteriorates to a predetermined limit.

PEDI – Portable exchange deionizers

In installations where regeneration systems are not adequate, replaceable portable exchange deionizers (PEDIs) are an excellent solution. The PEDI systems are suitable for a wide range of flow rates (up to 500 l/h) and use ion exchange resins to reduce positively and negatively charged ions in water. When the PEDI tanks are exhausted, your service technician can replace the ion exchange tanks to your specifications. This system type can reduce costs and the handling of chemicals such as caustic and acids that need to be regenerated.

Disinfection – UV systems

Grundfos can provide a wide range of disinfection solutions including:

  • Chlorine disinfection (Chlorine dioxide, Chlorine and Chem oxide)
  • UV sterilization
  • Ozone

Instrumentation and control systems, dosing systems

pH-Meters

REDOX-Meters

Klór-Meters

Keménység-Meters

Conductivity Meters

Turbidity Meters

Dosage Monitoring

Dosing systems

Waste water

MBR - Membrane BioReactor

Membrane BioReactor MBR technology offers significant advantages over conventional activated sludge wastewater treatment.

The use of fully submerged, flatsheet MBR membranes eliminates the need for clarifiers. This allows for a reduction in the footprint of treatment plants while producing higher quality effluent, particularly in terms of suspended solids.

We offers a range of MBR solutions, including containerized plants.

Learn more about the MBR system!

DUPLOX

By using intensive aeration and a residence time of  20 hours, the Duplox unit can operate in either a batch cycle or continuous flow mode. The Duplox system is capable of treating up to 250 population-equivalent wastewater. The Duplox system is an easy to install and operate wastewater treatment system.

OFSY-WGR

The OFSY (Omnifiltration) system consists of two filter units arranged in series, controlled by 8 diaphragm valves. The operation is fully automated thanks to the electric programmable control unit and the Pilot control valve. Models are available up to 68 m³/hour flow and 7 bar maximum operating pressure.

Degassing

FDA (Forced Draft Aerator)

FDA degassing uses aeration to remove volatile substances from water.

This means that compounds such as Carbon dioxide, Methane, Hydrogen sulphide and trihalomethanes (THMs) are removed or at least drastically reduced.

The 400-600-1000-1000-1400 FDA models are made entirely of polypropylene.

The tower model 1800 is constructed entirely in steel, protected internally by epoxy paint and externally by two coats of rust prevention paint.

Mobile and Containerized water treatment systems

Thanks to the compact nature of Grundfos (formerly Culligan) water treatment technology (pressure filtration, water softening, reverse osmosis, etc.), Grundfos has pioneered the design of containerised water treatment systems, allowing for rapid installation and commissioning.

They are ideal for remote or temporary sites such as construction camps. These units are designed to operate in extreme temperature conditions and provide complete treatment of water from a wide variety of sources, such as wells, seawater and river water.
